Identifying Polarized vs. Non-Polarized Capacitors
A Visual Guide to Capacitor Identification
Given the potential repercussions of incorrect connection, being able to readily identify whether a capacitor is polarized or non-polarized is a fundamental skill for anyone working with electronics. Thankfully, manufacturers are generally quite good at providing clear visual cues, so you don't need to be a seasoned detective to figure it out. It's like reading the label on a food product — essential for knowing what you're dealing with.
For polarized electrolytic capacitors, look for a distinct stripe along one side of the cylinder, often accompanied by a series of minus signs (—). This stripe invariably indicates the negative terminal. Sometimes, the positive lead might be longer than the negative lead, especially on new components, but relying solely on lead length can be misleading if the leads have been trimmed. Always prioritize the markings on the capacitor body itself.

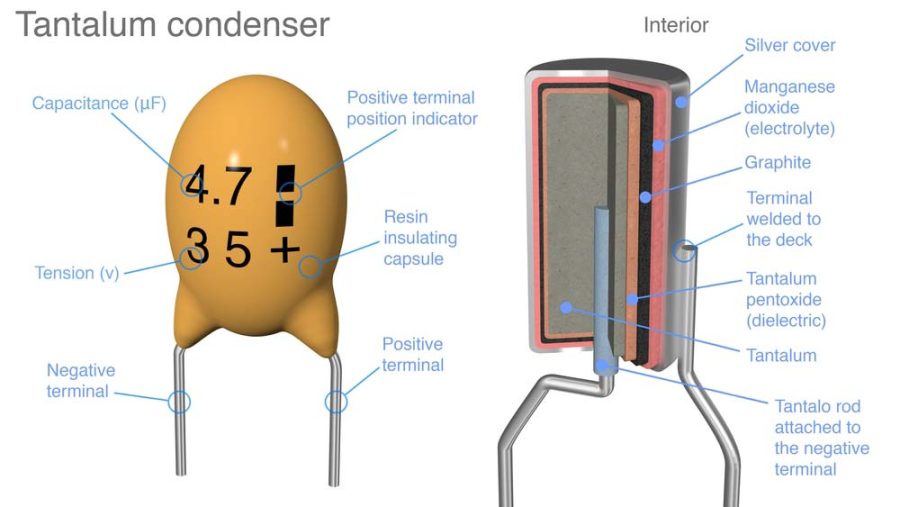

Tantalum capacitors, another type of polarized capacitor, often have a plus sign (+) or a bevelled edge on the positive side. These are typically smaller and more compact than electrolytic capacitors, but the principle of clear marking remains. It's a subtle but crucial detail that sets them apart.
Non-polarized capacitors, such as ceramic discs, film capacitors, and often some types of polyester capacitors, typically have no such markings. Their symmetrical appearance is a dead giveaway. You can connect them in either direction without concern. They're the truly ambivalent components of the electrical world.
When in doubt, it's always best to consult the component's datasheet or perform a quick online search using the part number. A few seconds of verification can save you a lot of headaches (and perhaps a bit of smoke) down the line. Remember, in electronics, an ounce of prevention is worth a pound of cure, or in this case, a pound of burnt circuitry.
